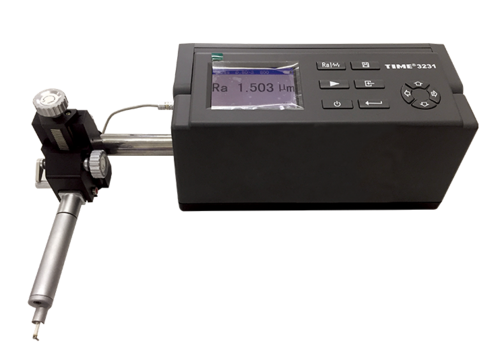

Roughness tester TIME®3231
TIME®3231: Precise Roughness Tester with 90° Measuring Function

TIME®3231

The TIME®3231 is a high-precision surface roughness tester of the TIME®323X series with a wide measuring range (±400 µm) and high accuracy (tolerance ±5 %, repeatability 3 %). Thanks to probe- or skid-less measurement, it can also measure smaller and hard-to-reach components that cannot be measured with conventional devices. It supports up to 55 parameters for roughness, waviness, and primary profile. In addition, the TIME®3231 features a 90°-measuring function.

Properties of the TIME®3231

  • Integrated design, simple and convenient operation, suitable for narrow areas down to 1.5 mm
  • 55 measuring parameters according to ISO/DIN/ANSI/JIS standards
  • Rectangular drive for 90° measurements, also without stylus (skid)
  • High accuracy for roughness, waviness, and primary profile measurement
  • LCD display with digital and graphical information
  • Numerous optional pickups for hard-to-reach areas, with or without extension
  • Data transfer to PC via RS232, with TIMESurf PC software for evaluation; storage in Excel format
  • Connectable printer for digital and graphical printouts
  • Wide measuring range up to 800 µm, accuracy 5 %, repeatability 3 %

Measurement principle of the TIME®3231

During the measuring process, the sensor is moved linearly along the traversing length. The stylus follows the profile of the traversing length, moving up and down. These movements are converted into electrical signals, which are then amplified, filtered, and converted into digital values using an A/D converter. A mathematical representation of the profile is generated from these values using a microprocessor. Based on this representation, the Ra and Rz values (or Rq and Rt values) are calculated according to the relevant standards and displayed on the screen.

Standard delivery scope
  • Device TIME®3231
  • Standard pickup TIMES247
  • Ra reference standard
  • Power supply unit
  • Communication cable
  • User manual
Special accessories of the TIME®3231
  • PC software TIMESurf (for TIME®323X)
  • Communication cable (RS232)
  • Magnetic, detachable pickup
  • Printer TA230
  • Pickups for special applications: S230V, S230U, S231, S232, S233, S234, S235, S236, S238
  • Measuring stand TA650
Technical Data
Assessed profileR (roughness), W (waviness), P (primary profile)
Measuring range±400 µm, ±25 µm
FilteringRC, PCRC, Gaussian, D-P, ISO 13565
Parameters (selection)R: Ra, Rp, Rv, Rt, Rz, Rq etc.
W: Wa, Wp, Wv, Wz, Wq etc.
P: Pa, Pp, Pv, Pz, Pq etc.
Rk: Rk, Rpk, Rvk, Mr1, Mr2
(55 parameters in total)
Cutoff wavelength0.08 / 0.25 / 0.8 / 2.5 / 8 mm
Max. traversing length40 mm
Evaluation curvesADC, BAC
Evaluation length1L–5L
Resolution0.001 µm / 50 µm; 0.016 µm / 800 µm
Tolerance±5 %
Repeatability3 %
DisplayLCD
Memory10 data sets (raw data)
Data outputRS232, USB
Power supplyLi-ion battery / power supply unit
Dimensions409 × 96 × 98 mm
Weight2300 g

All SaluTron® measuring instruments comply with national (DIN) and international (ISO, BS, ASTM) standards and carry the CE mark.
Subject to technical changes.

The following optional pickups are available for the TIME®3231, with application examples:

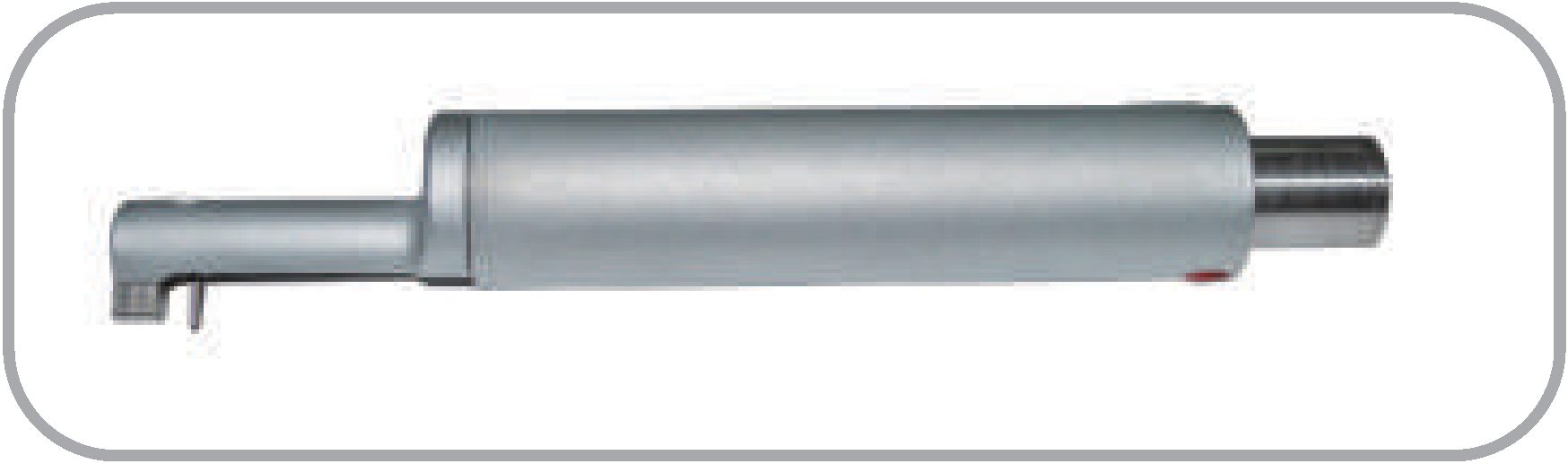

TIME S230TIME S230 – Standard pickup

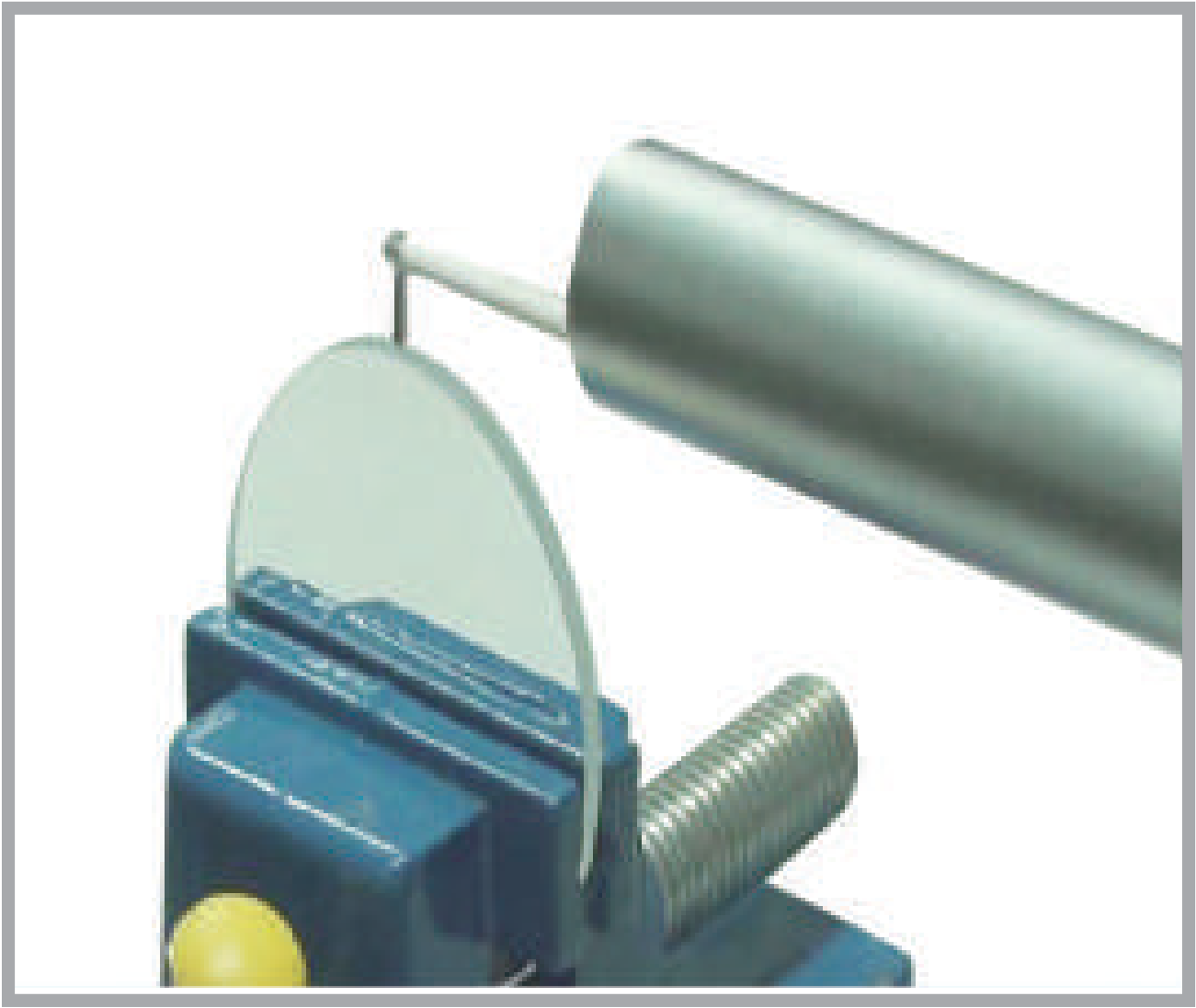

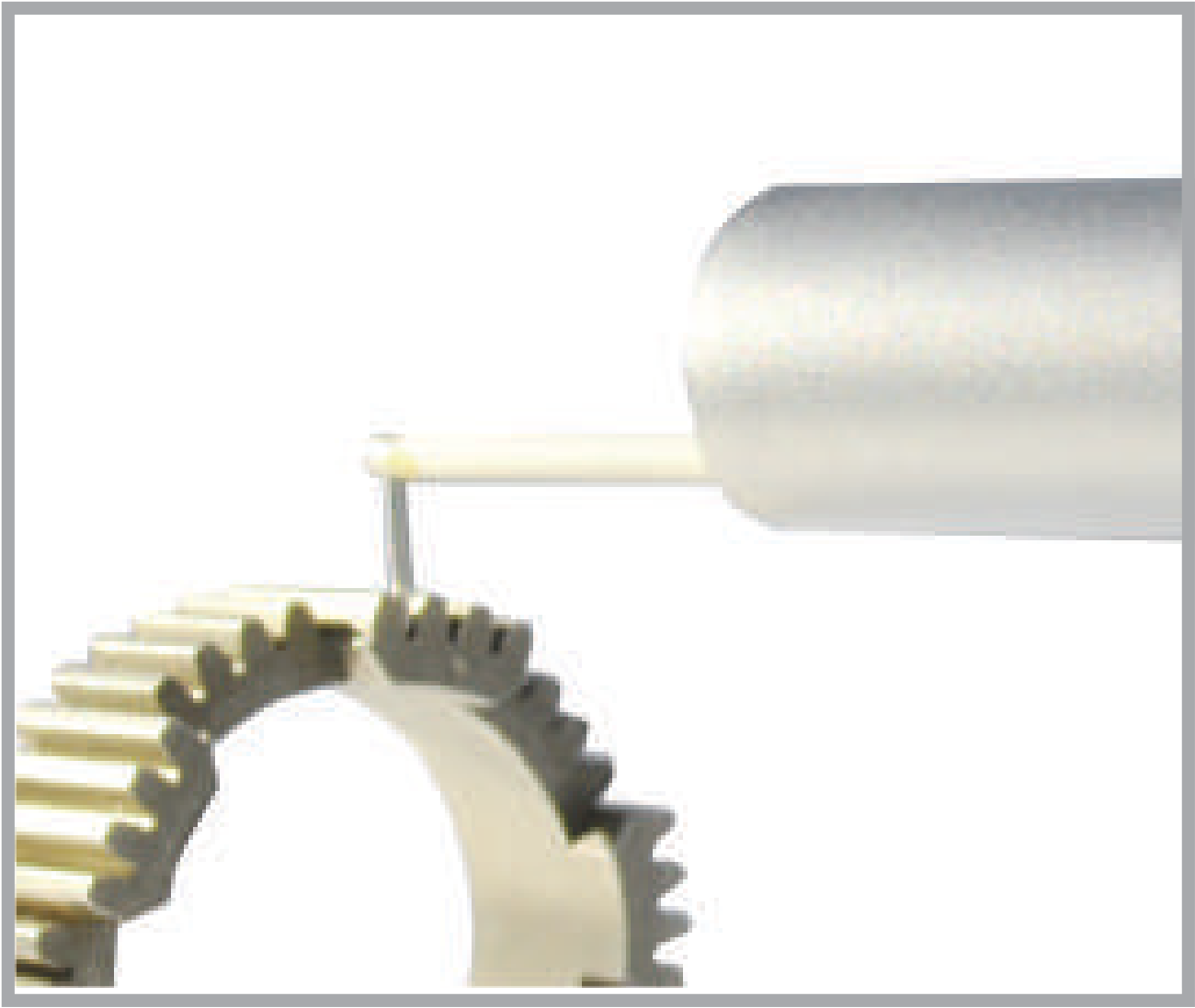

Application example TIME S230 on the TIME®3231Application example TIME S230V on the TIME®3231

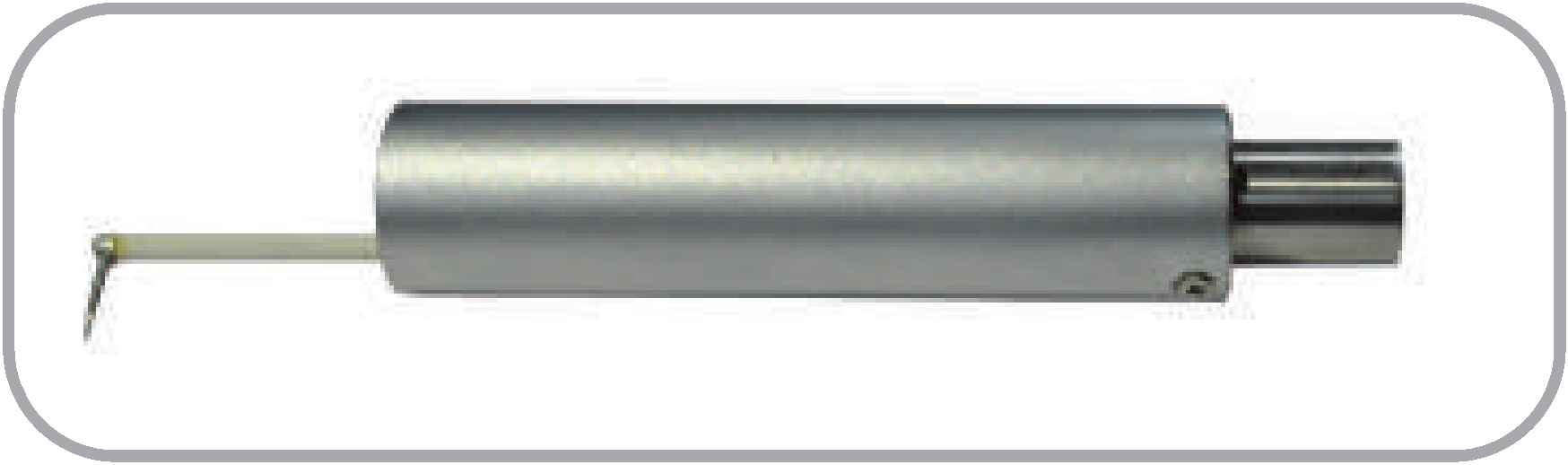

TIME S230VTIME S230V – Pickup with 7 mm interchangeable diameter

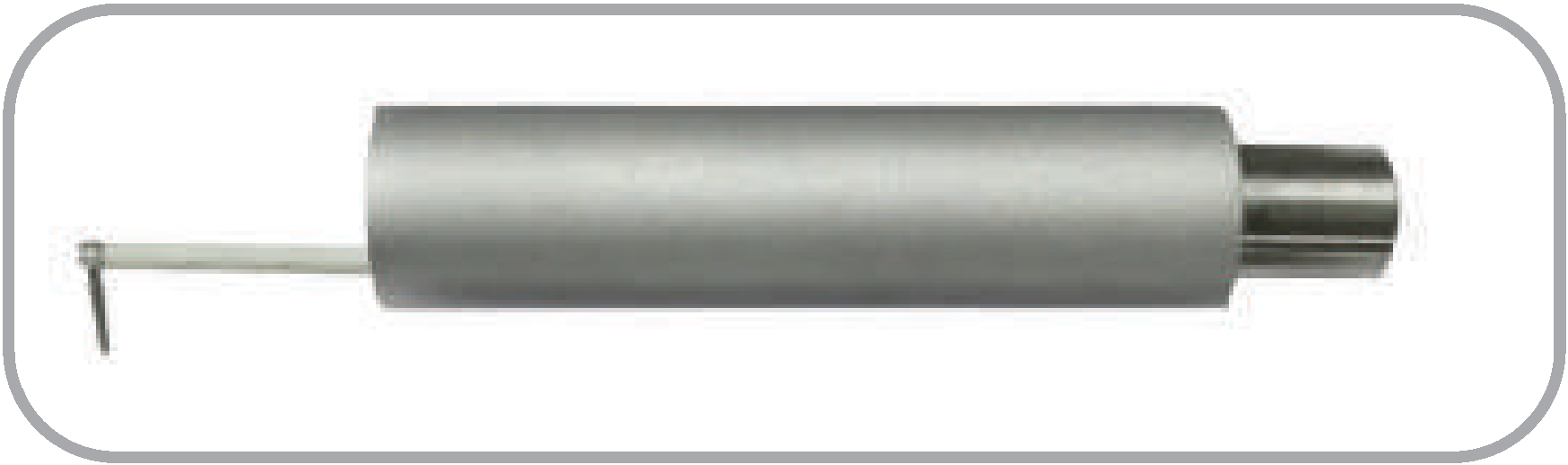

TIME S230UTIME S230U – Pickup (7 mm)

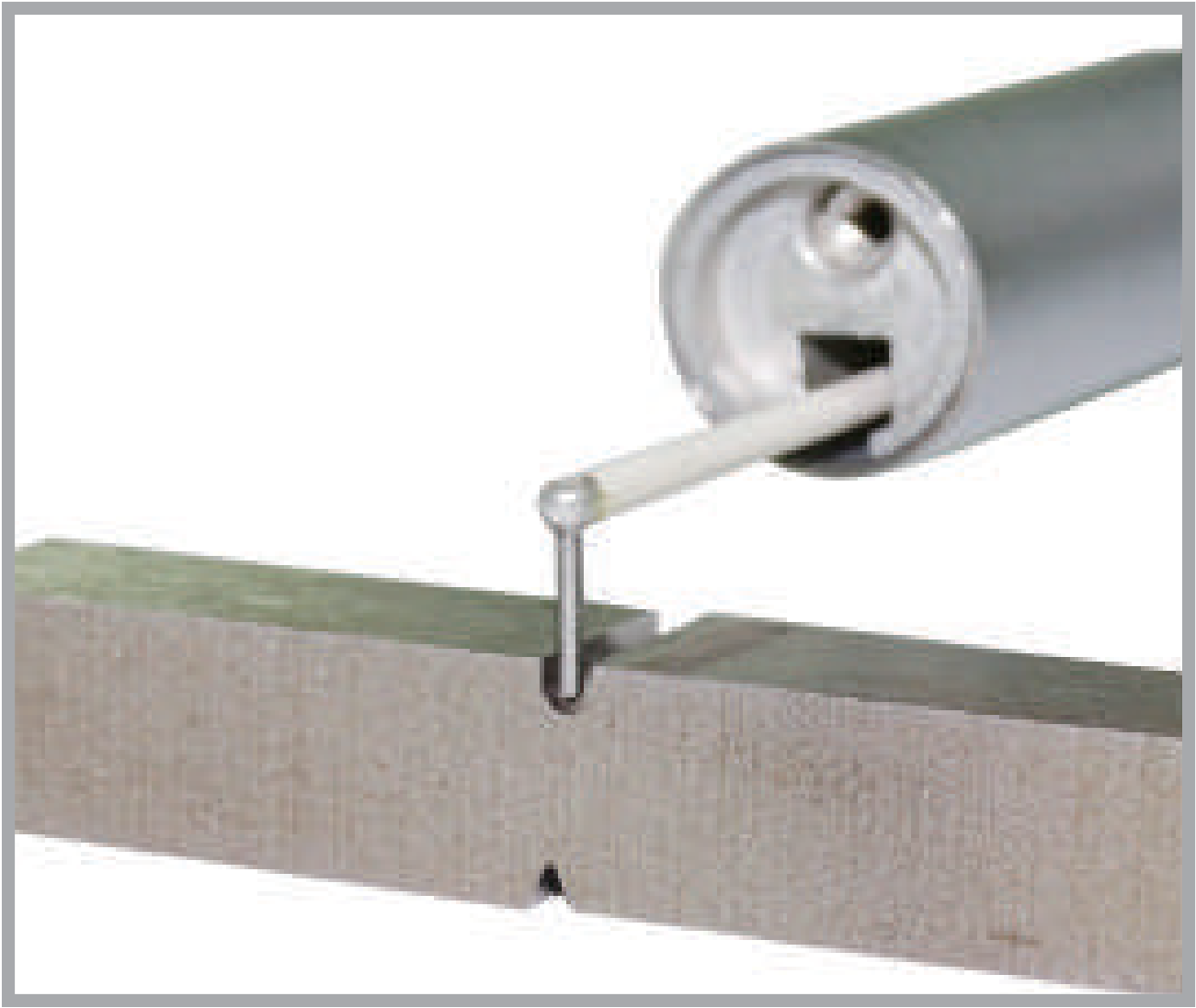

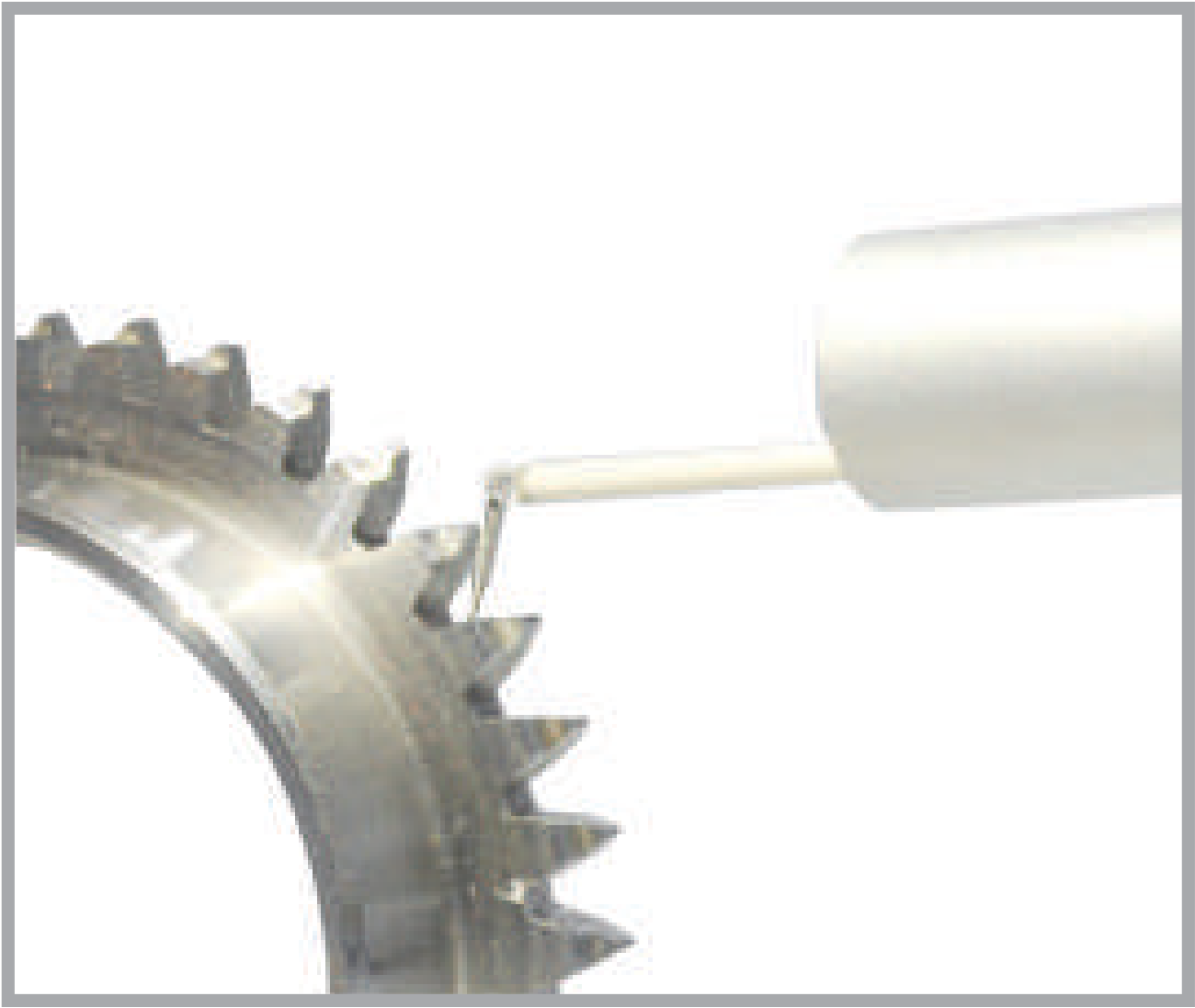

Application example TIME S230U on the TIME®3231Application example TIME S231 on the TIME®3231

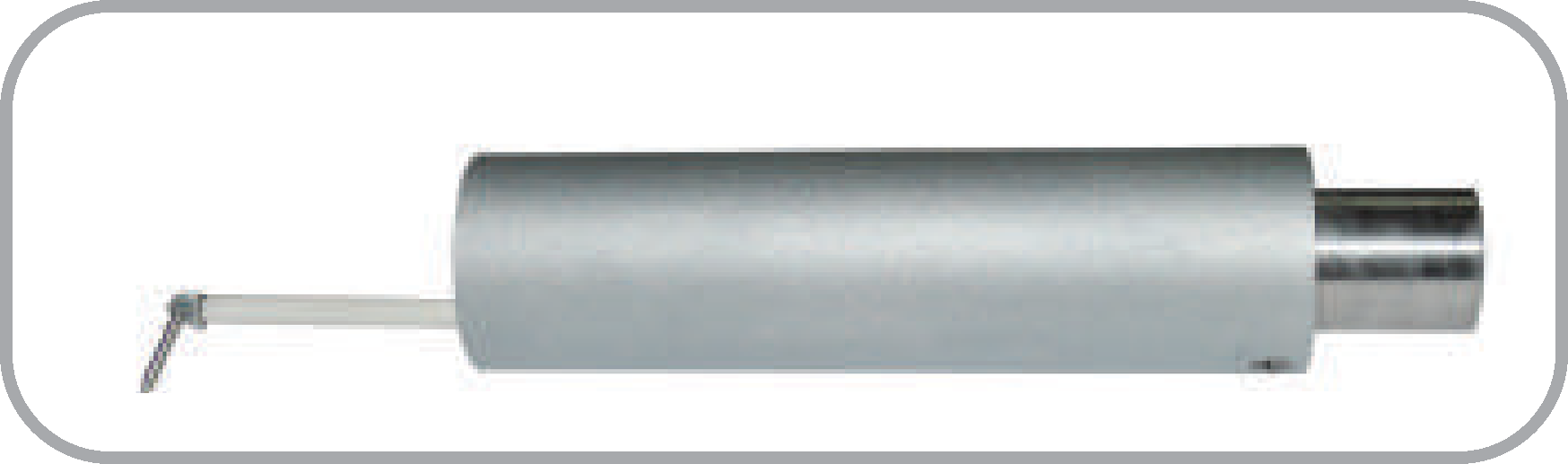

TIME S231TIME S231 – Pickup for gear flanks (120° stylus tip)

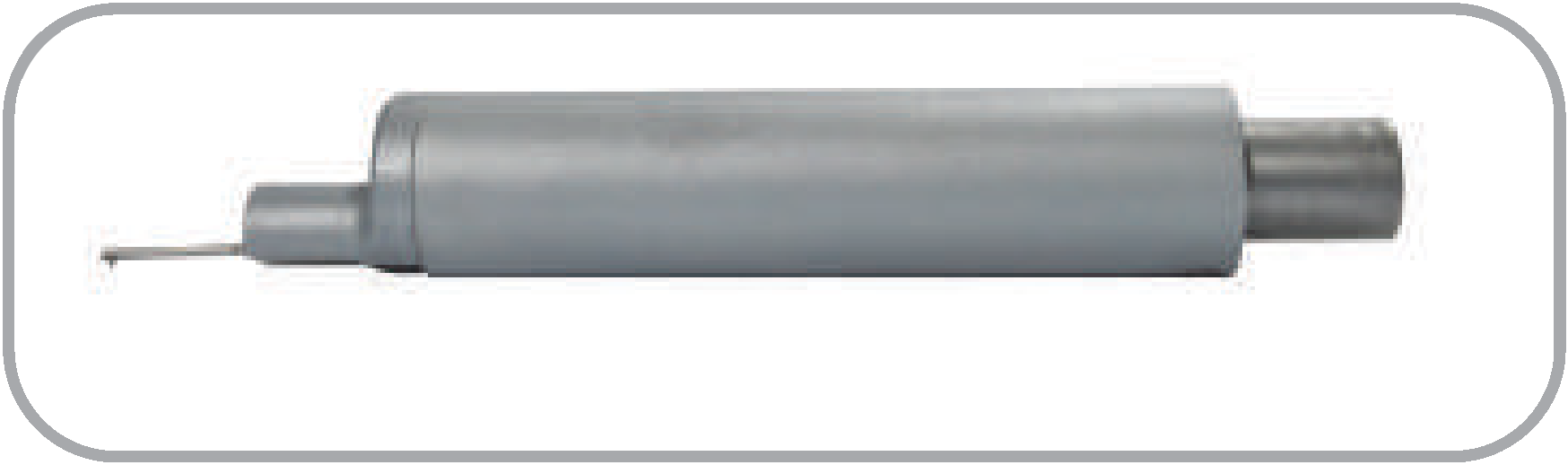

TIME S232TIME S232 – Pickup for small bores (Ø 1.33 mm)

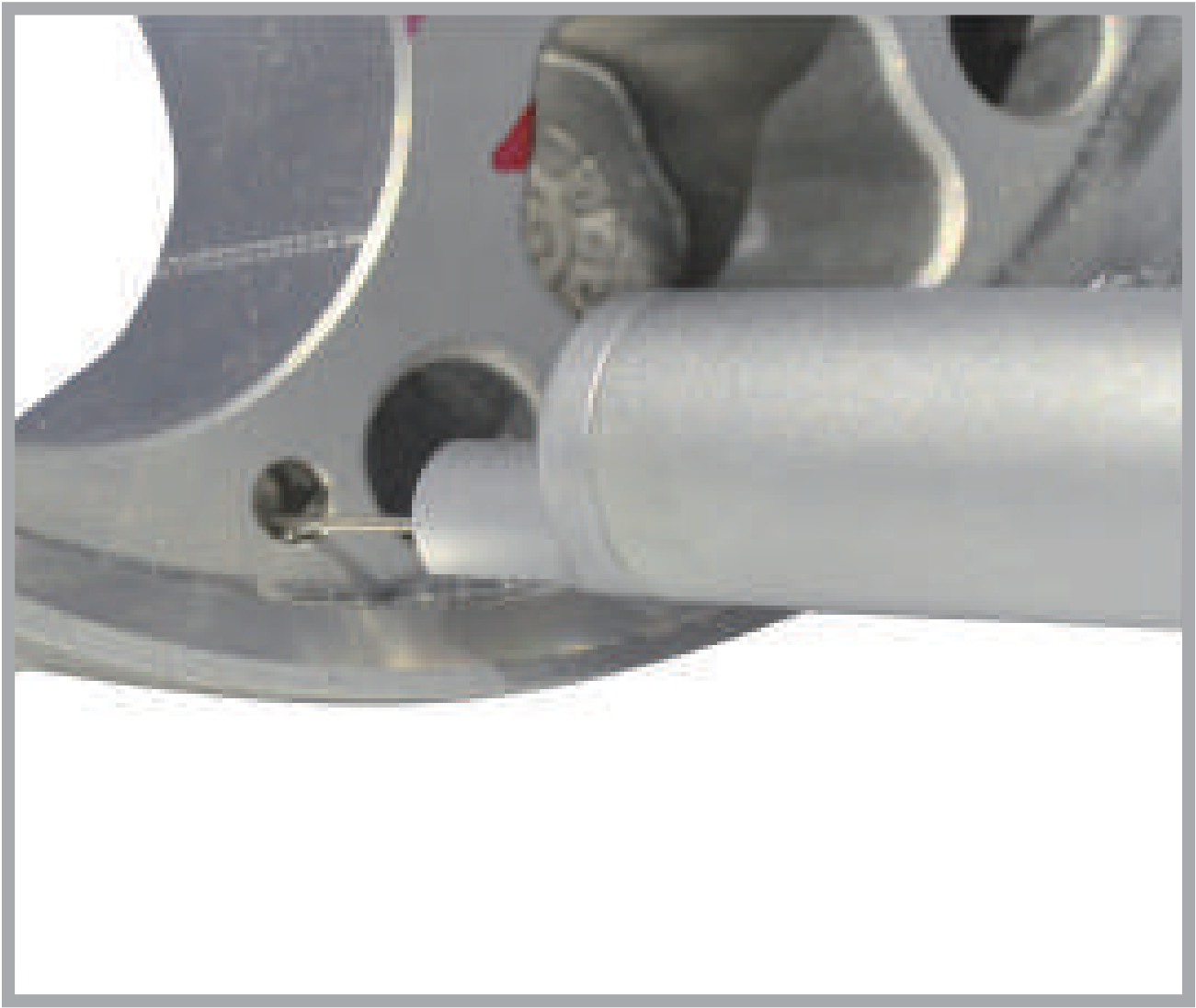

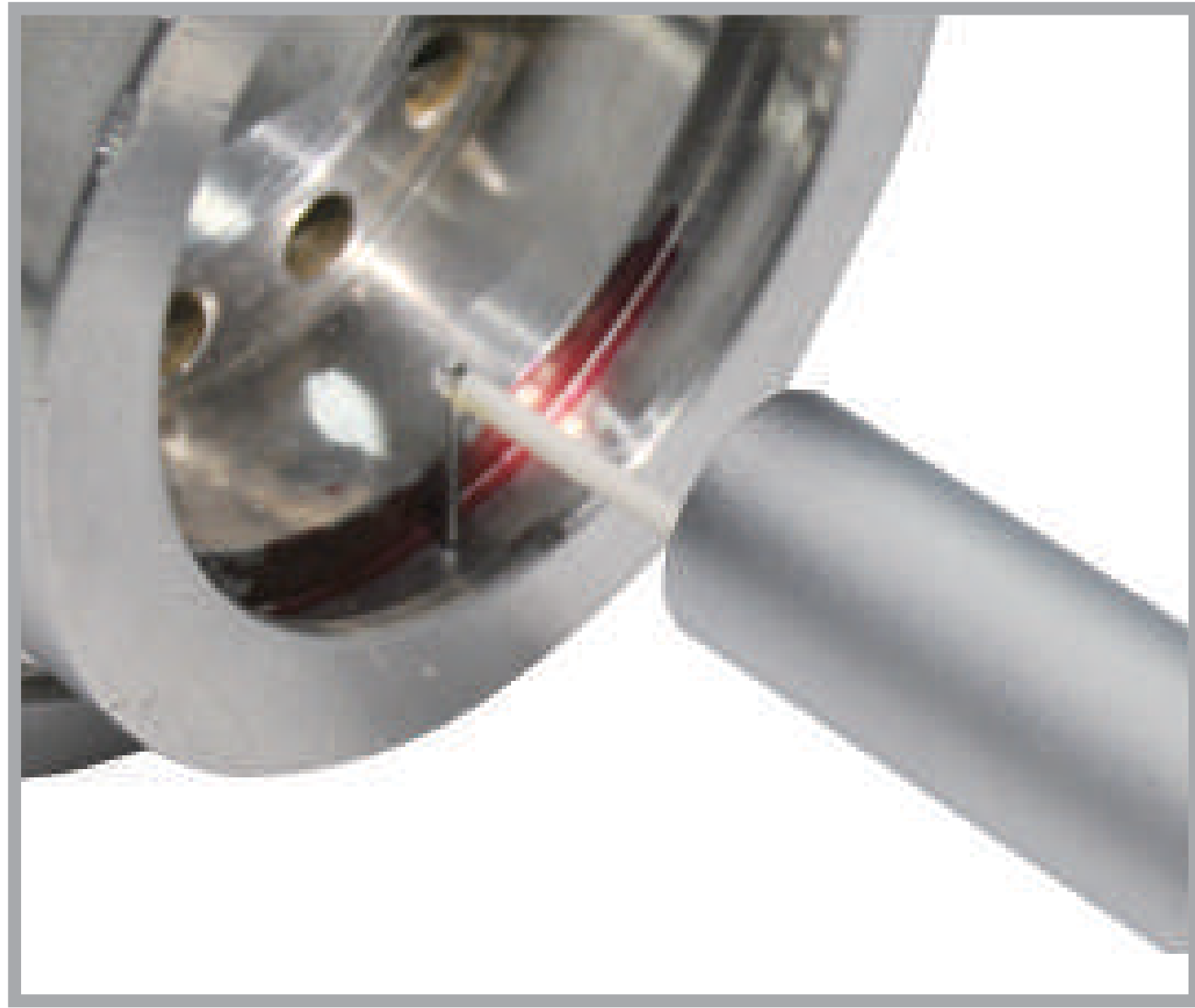

Application example TIME S232 on the TIME®3231Application example TIME S233 on the TIME®3231

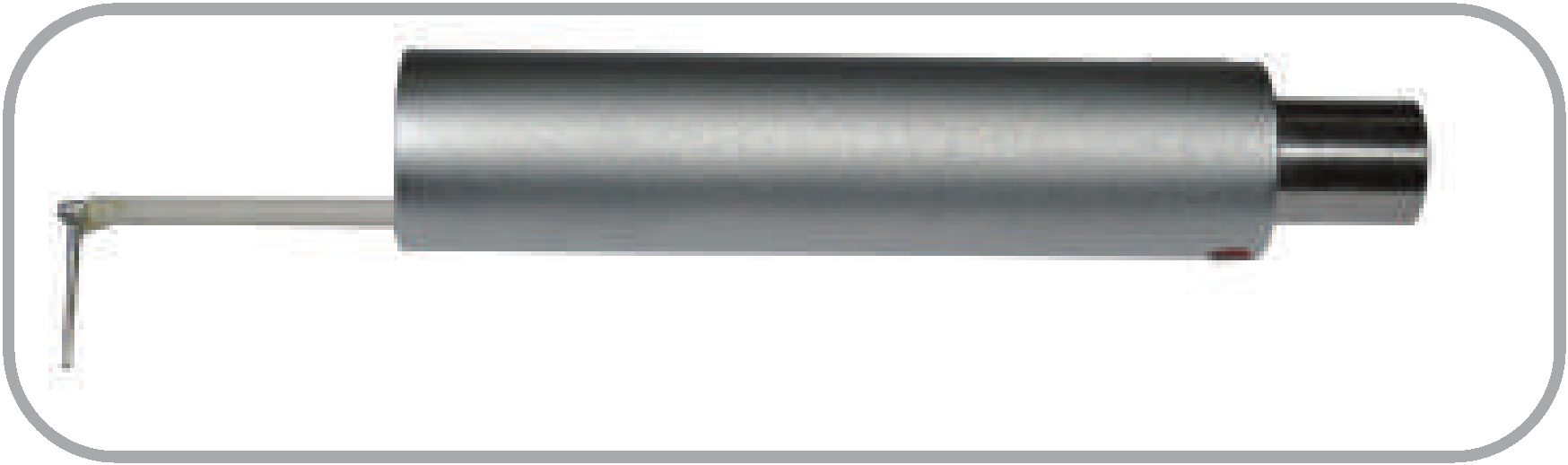

TIME S233TIME S233 – Pickup for deep groove (10 mm)

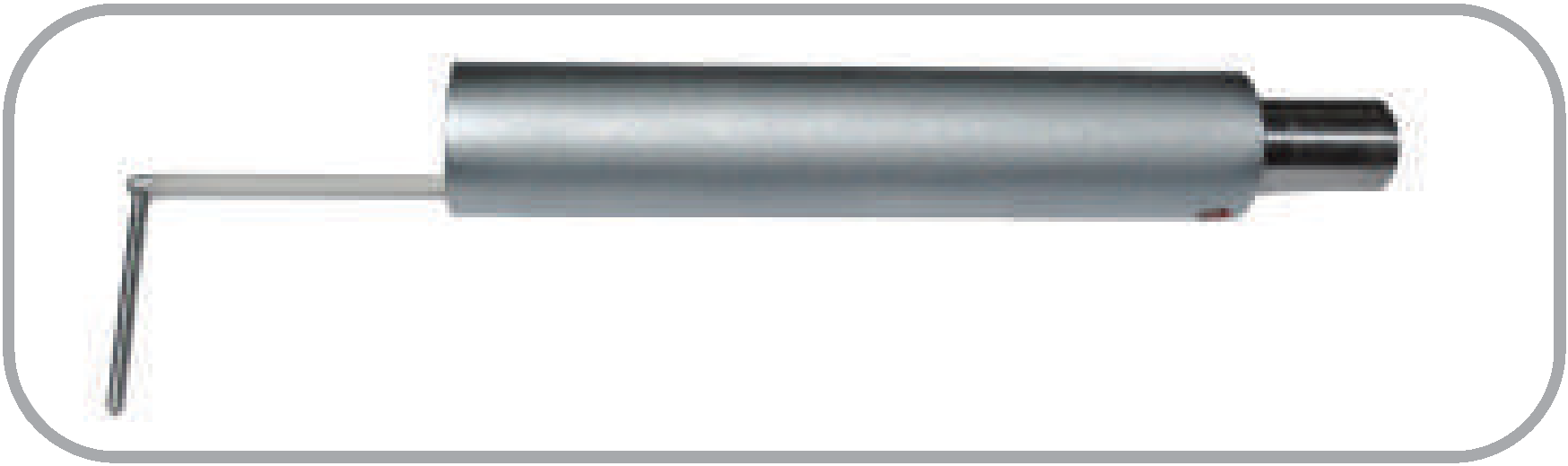

TIME S236TIME S236 – Pickup for extra-deep groove (20 mm)

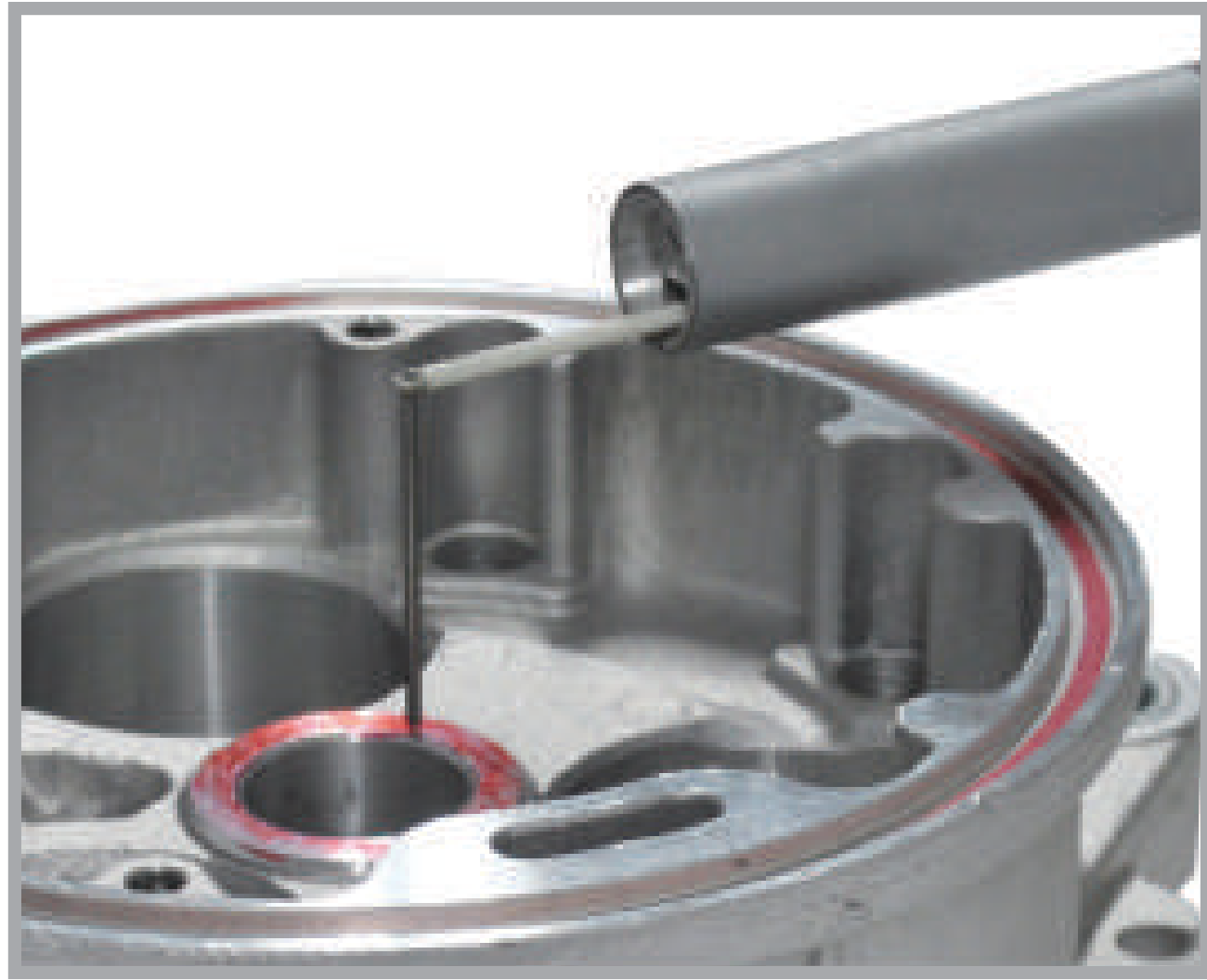

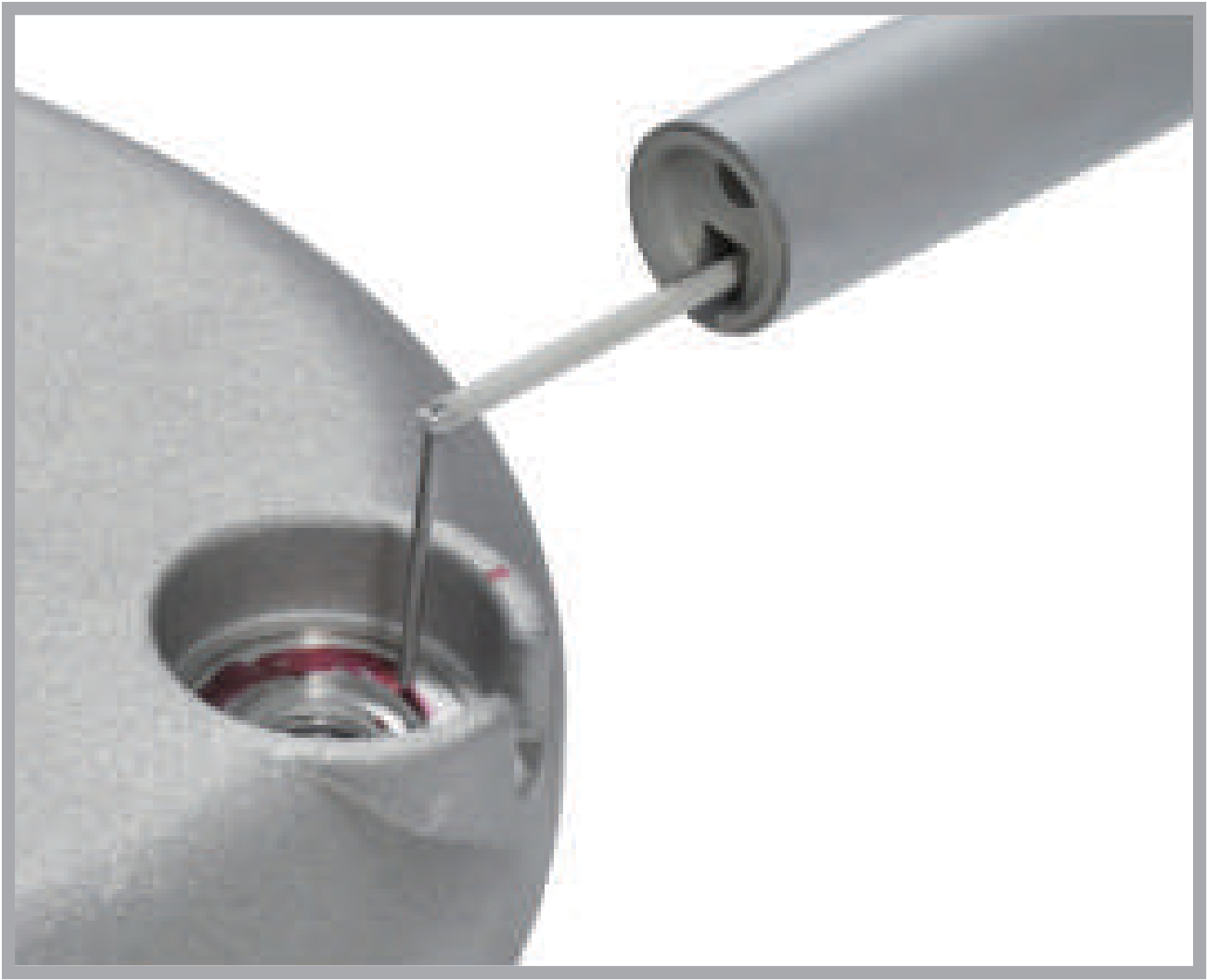

Application example TIME S236 on the TIME®3231Application example TIME S238 on the TIME®3231

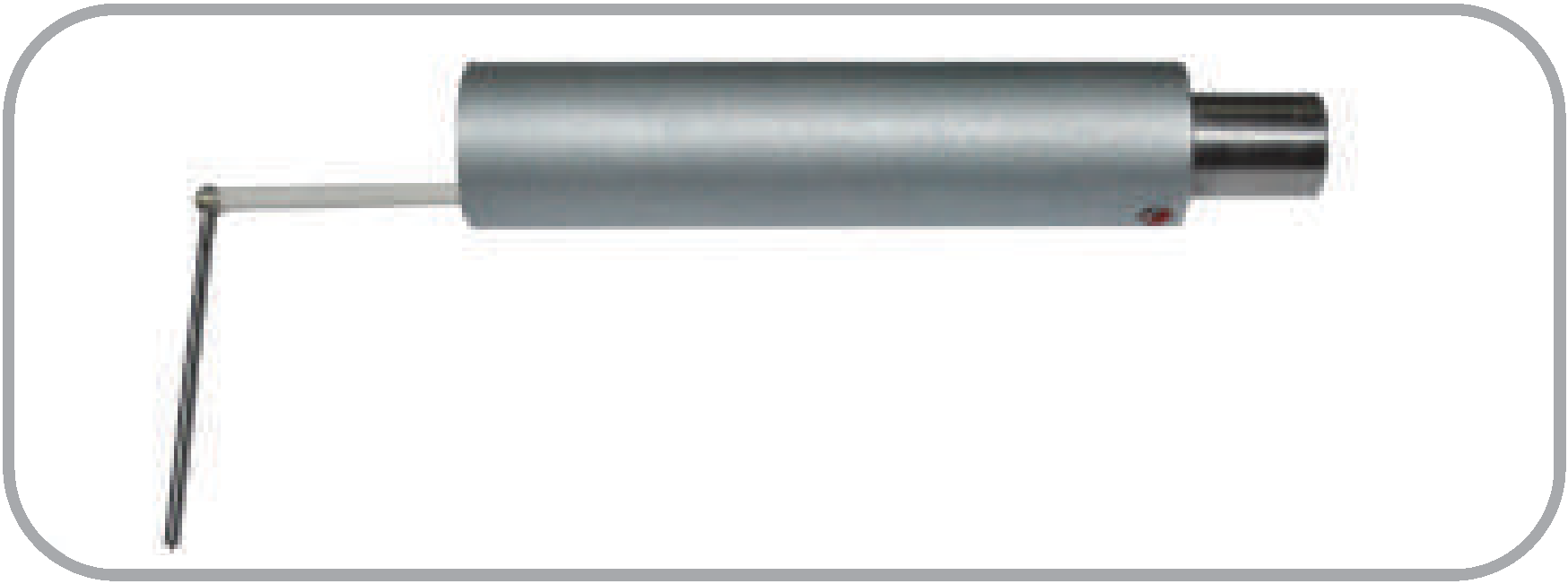

TIME S238TIME S238 – Pickup for super-deep groove (30 mm)

Pickups – Dimensions.

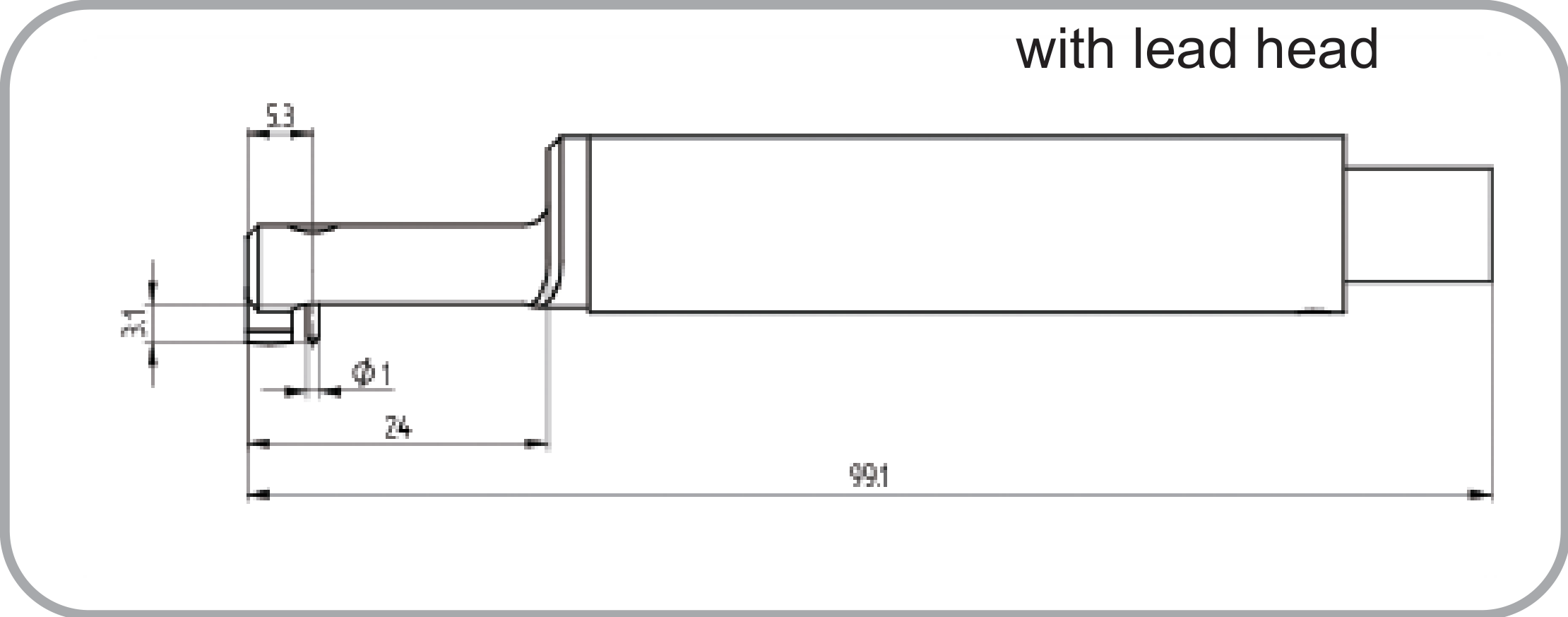

TIME S230 drawing

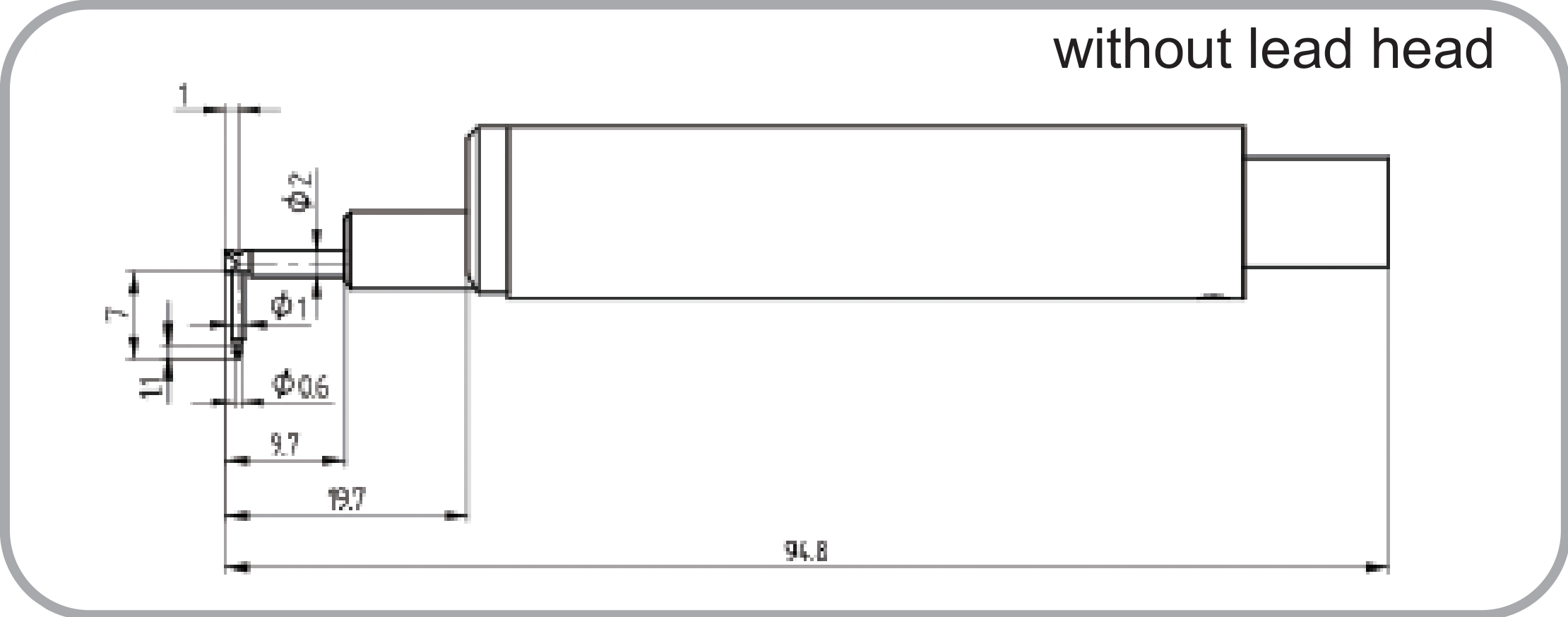

TIME S230 – Standard pickup		TIME S230V drawing
TIME S230V – Pickup with 7 mm interchangeable diameter

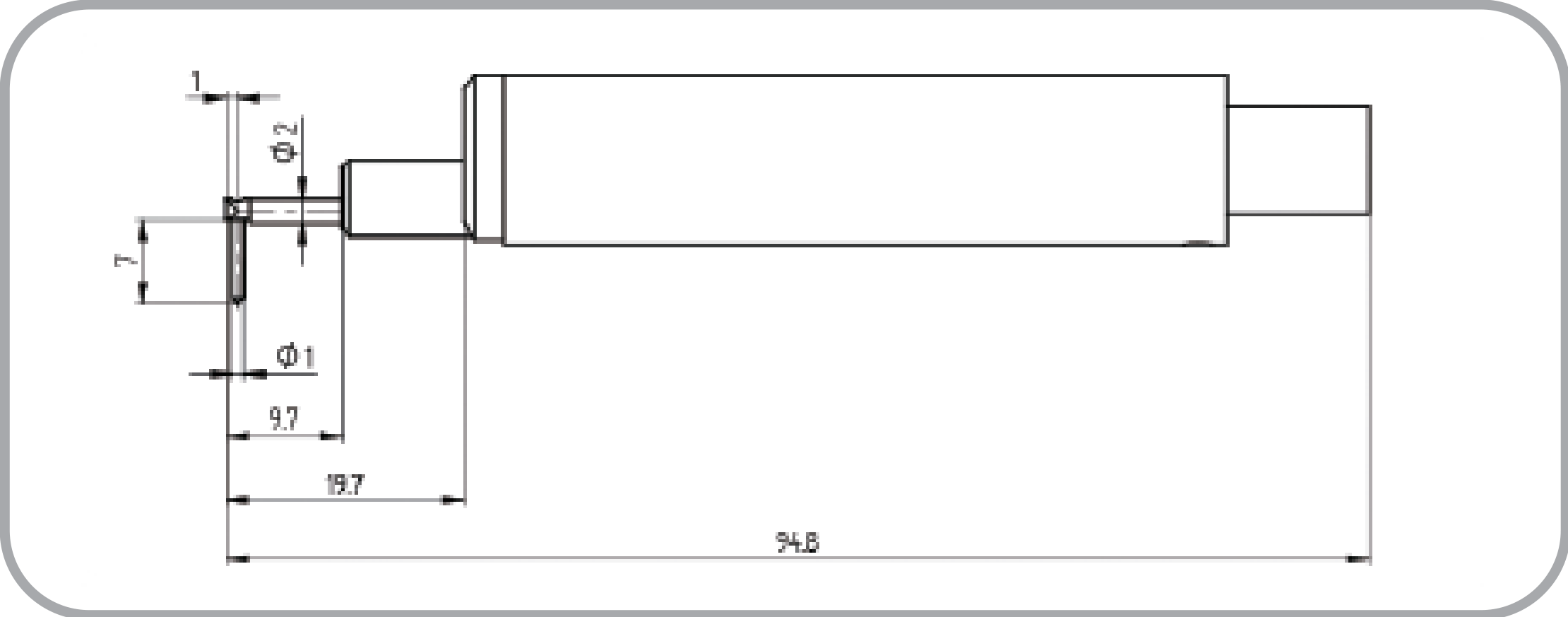

TIME S230U drawing

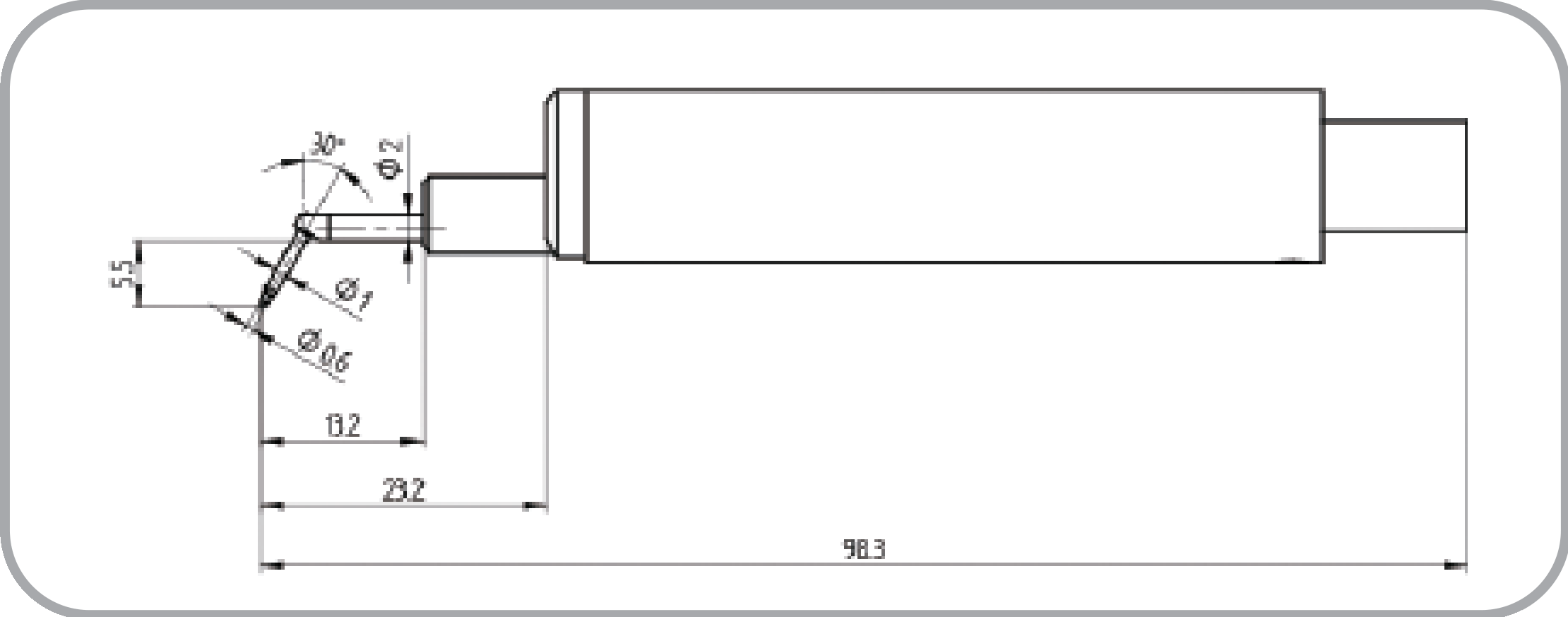

TIME S230U – Pickup (7 mm)		TIME S231 drawing
TIME S231 – Pickup for gear flanks (120° stylus tip)

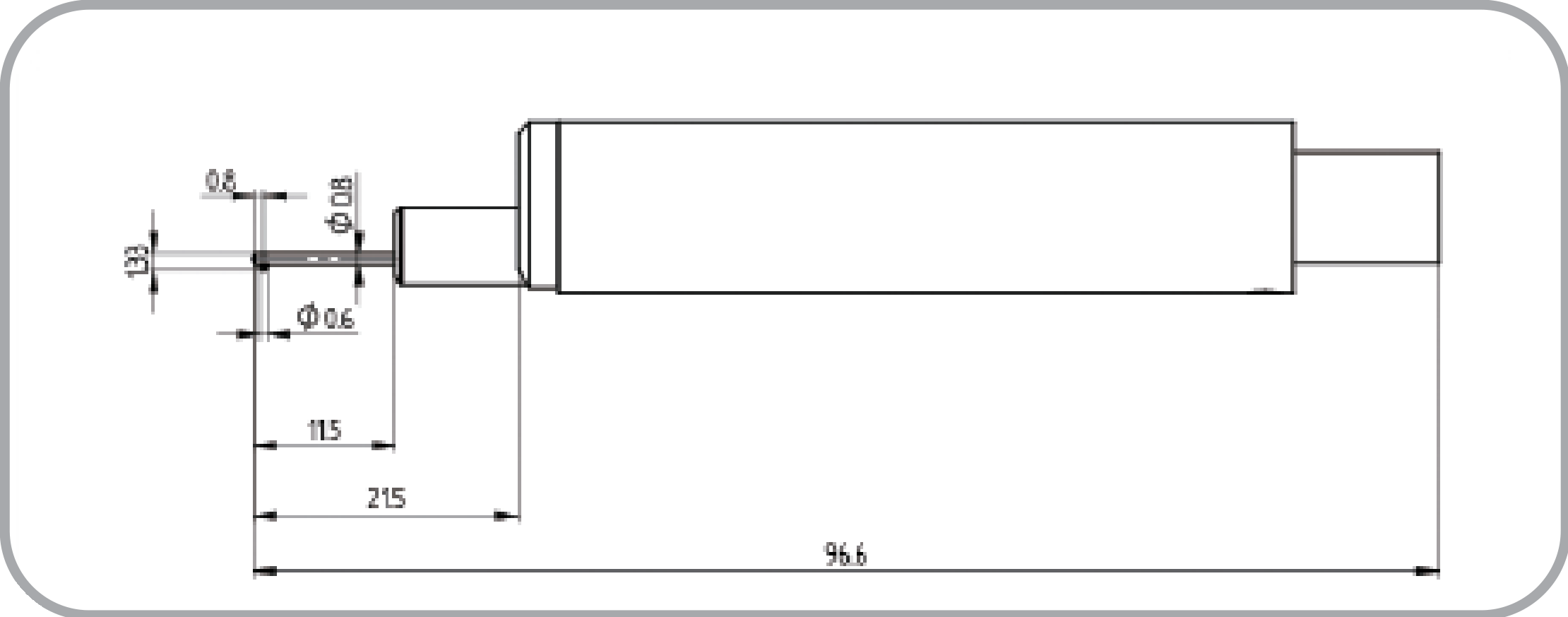

TIME S232 drawing

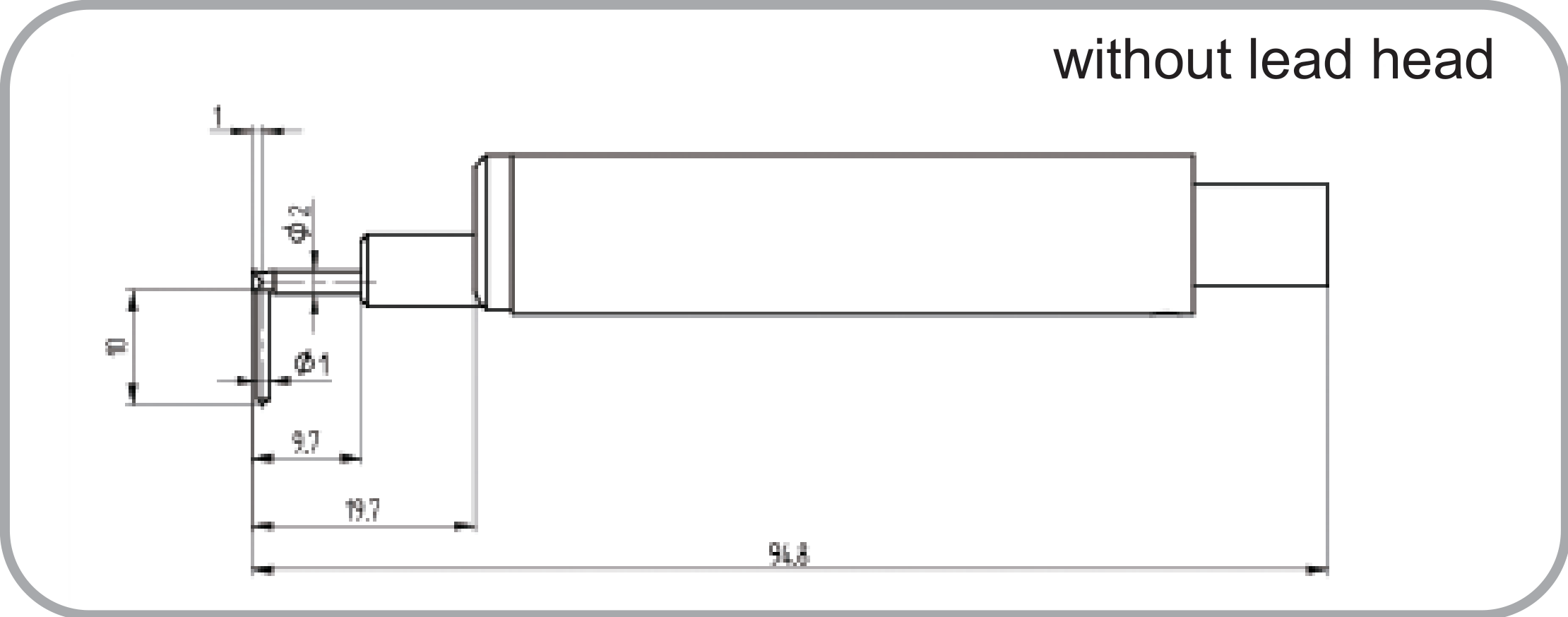

TIME S232 – Pickup for small bores (Ø 1.33 mm)		TIME S233 drawing
TIME S233 – Pickup for deep groove (10 mm)

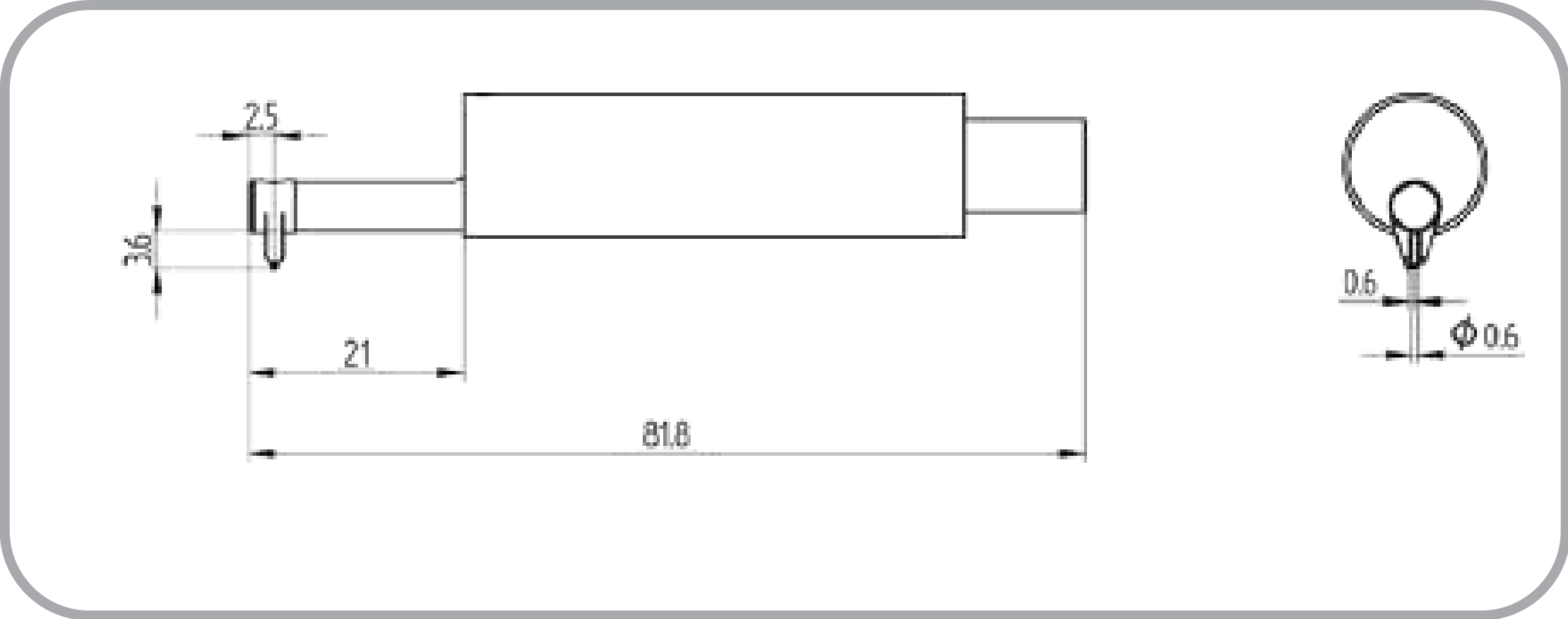

TIME S234 drawing

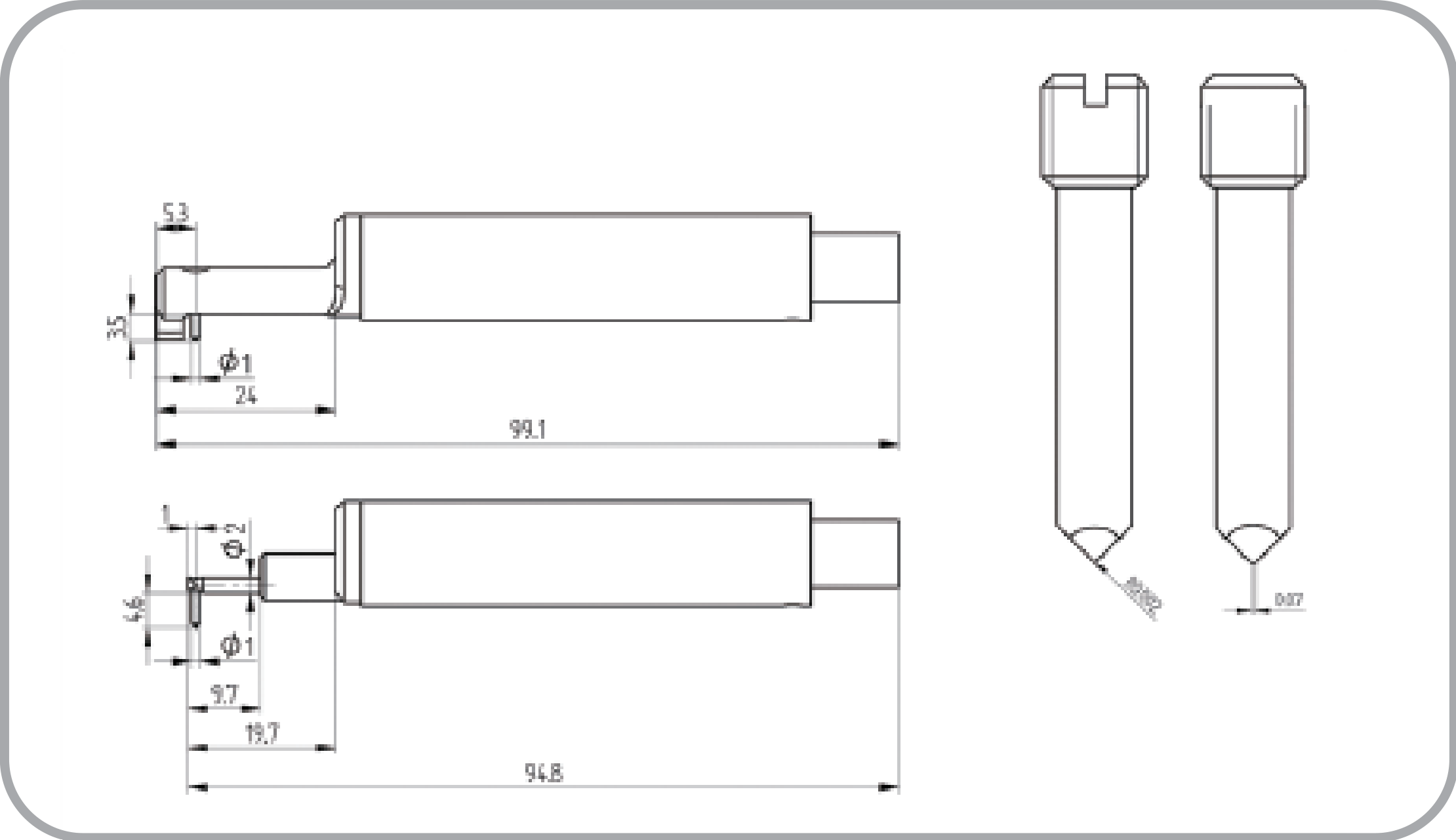

TIME S234 – Pickup for curved surfaces		TIME S235 drawing
TIME S235 – Pickup for cutting blades

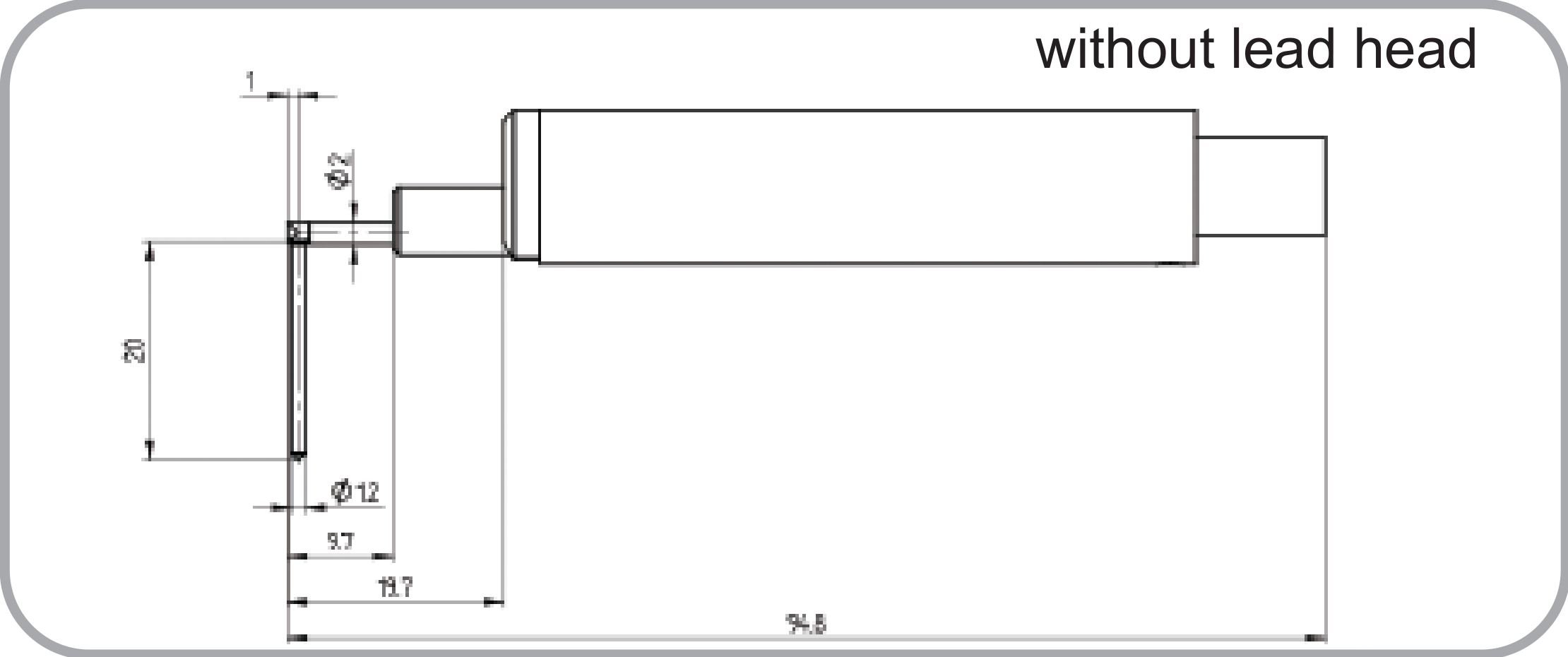

TIME S236 drawing

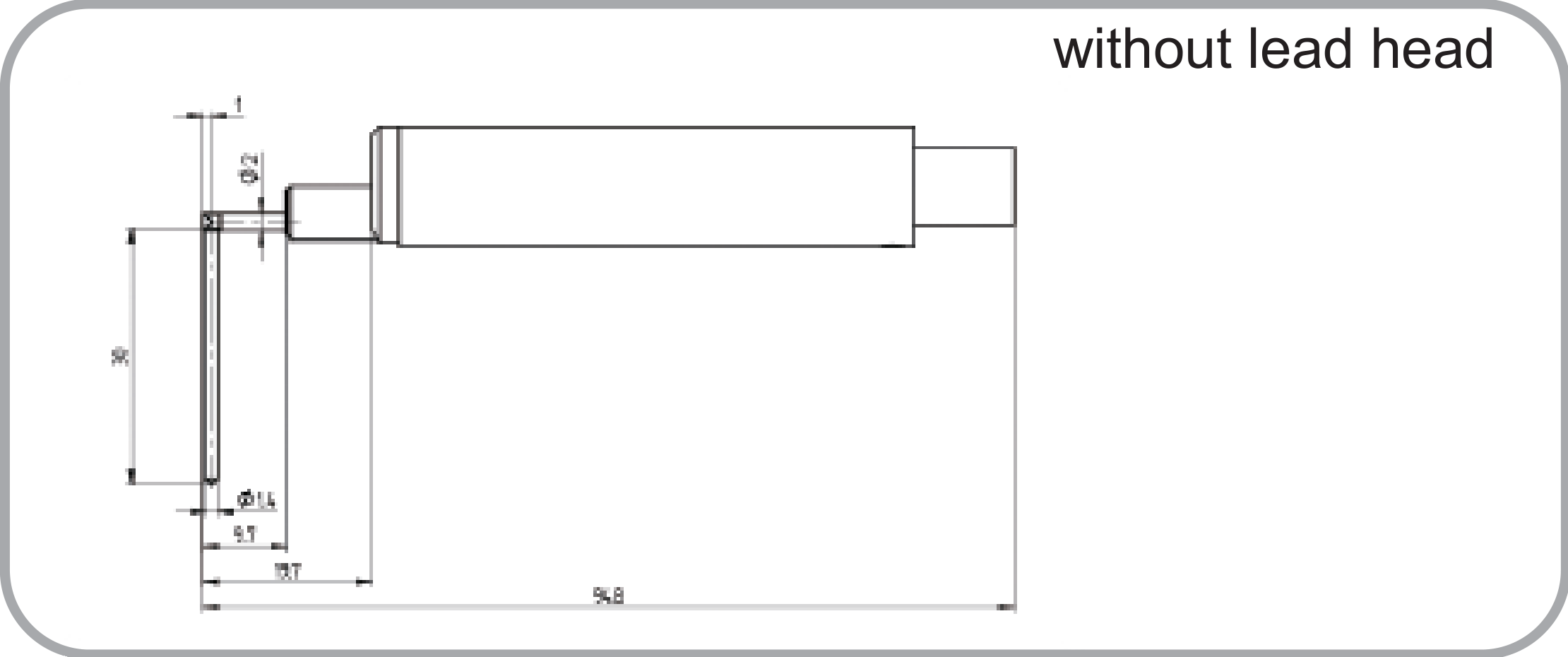

TIME S236 – Pickup for extra-deep groove (20 mm)		TIME S238 drawing
TIME S238 – Pickup for super-deep groove (30 mm)

Measuring stands for the TIME®3231

The following measuring stands are available on request for the TIME®3231:

Measuring stand TA650 for the TIME®3231TA650 – Measuring stand
Measuring stand with granite platform.
Granite platform: 600 mm × 420 mm × 80 mm
Working surface accuracy: Class 00
Vertical lifting height: 300 ± 1 mm
Vertical rotation angle: ±45°
Lifting return error: ≤ 1/6 turn of handwheel
Total height: 695 mm
Suitable for: TIME3231

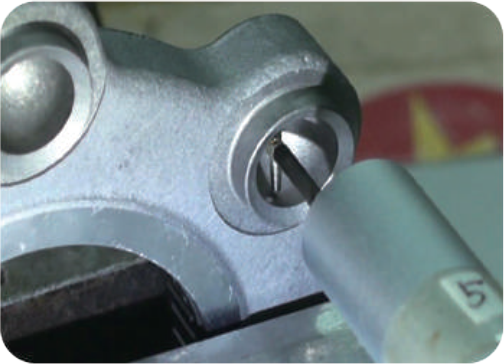

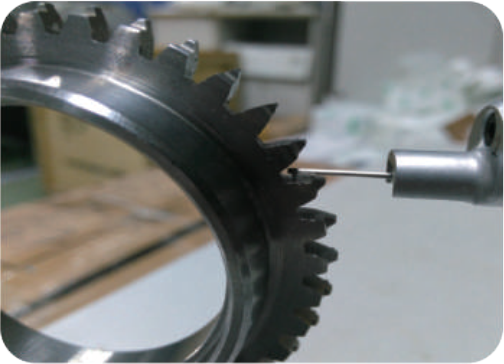

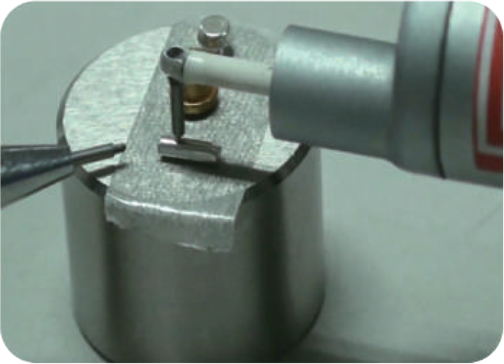

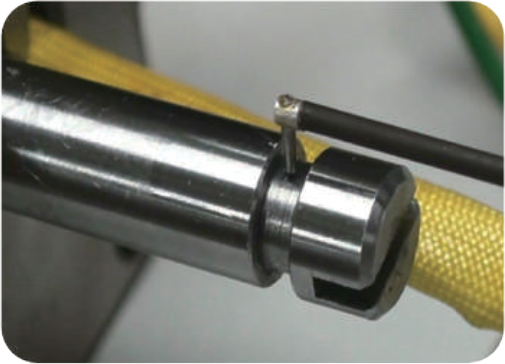

Application examples for the TIME®3231 in practice:

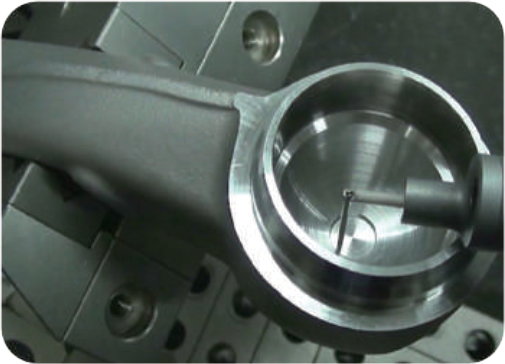

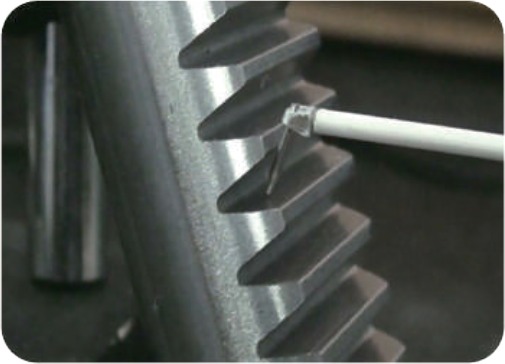

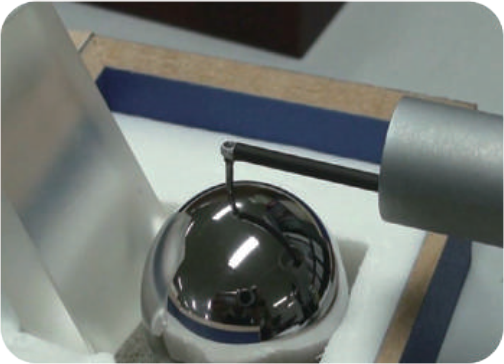

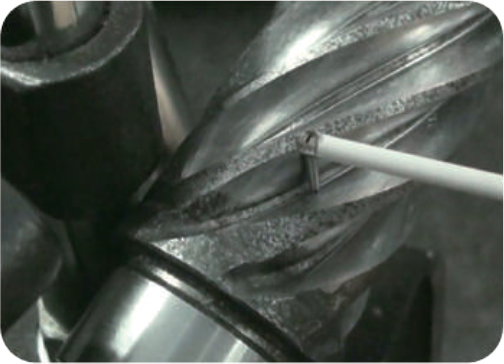

Application example TIME®3231 1Application example TIME®3231 2Application example TIME®3231 3Application example TIME®3231 4Application example TIME®3231 5Application example TIME®3231 6Application example TIME®3231 7Application example TIME®3231 8

Request a quote or further information here!

Areas of application of the TIME®3231

  • Automotive industry
  • Aerospace industry
  • Mechanical engineering
  • Medical technology
  • Electronics industry
