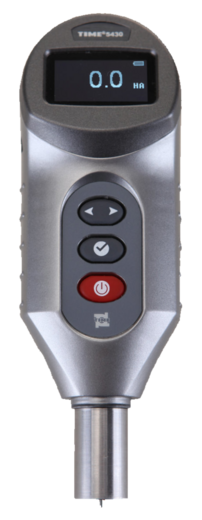

TIME®5430
The Shore durometer TIME®5430 is a digital Shore A hardness tester of the new generation for soft rubber, plastics, printing rollers and other elastomers. An LVDT displacement sensor ensures accurate readings, even in harsh environments.
The OLED display with menu operation clearly shows hardness value, average and peak value. Three work modes are available: real-time, peak-value lock and timing lock. In addition, the TIME®5430 stores up to 200 average values.
Via USB you transfer the data to a PC with the optional software and export it as a Word or Excel file.
Features of the TIME®5430
- digital Shore A durometer according to DIN 53505, ASTM D2240, ISO 7619 and JIS K7215
- LVDT displacement sensor: accurate and suitable for harsh environments
- OLED display with menu operation
- automatic zero-point calibration
- three work modes: real-time, peak-value lock and timing lock (1 to 60 s)
- upper and lower limits can be preset, prompt when out of limit for batch testing
- average calculation with automatic removal of gross errors
- memory for 200 average values
- USB data output, optional software for export to Word or Excel
- built-in rechargeable battery, up to 24 hours of continuous operation
Applications of the TIME®5430
- hardness testing of soft rubber, elastomers and plastics according to Shore A
- testing of printing rollers
- batch testing with preset limits and a prompt when out of limit
- incoming goods and quality inspection in rubber and plastics processing
- documentation of readings on the PC (Word or Excel) with the optional software
Additional equipment for the TIME®5430
- Operation stand for even application of force, constant test force and better repeatability
- USB communication cable and Dataview software for data transfer to the PC
Standard scope of delivery
- TIME®5430 hardness tester
- Test block
- Power adapter
- Instruction manual
Optional accessories
- Operating stand TIME®A521 with height-adjustable holder for different sample thicknesses
- USB communication cable
- Dataview software for transferring the data to the PC (Word or Excel format)
Downloads
pdf - 175 KB
Technical specifications
| Hardness scale | Shore A |
| Measuring range | 0–100 HA |
| Tolerance | ≤ ±1 HA (20–90 HA) |
| Resolution | 0.1 HA |
| Standards | DIN 53505, ASTM D2240, ISO 7619, JIS K7215 |
| Data output | USB |
| Memory | 200 average values |
| Power supply | built-in rechargeable battery |
| Continuous working time | 24 hours |
| Operating temperature | 0–40 °C |
| Dimensions | 173 × 56 × 42 mm |
| Weight | 200 g |
| Optional accessories | Communication cable, operation stand, Dataview software |
Operating stand TIME®A521 for the TIME®5430
The operating stand TIME®A521 is intended for the devices TIME®5430, TIME®5432 and TIME®5432C of the TIME®543X series. It ensures high measurement accuracy and repeatability.
- Constant measuring force: eliminates errors caused by differing forces applied by hand
- The operating handle applies the force evenly to the sample
- The testing height can be adjusted for different sample thicknesses
Technical data of the operating stand TIME®A521
| Model | TIME®A521 |
| Suitable for | TIME®5430, TIME®5432, TIME®5432C |
| Max. sample thickness | 80 mm |
| Max. diameter of working table | Ø 116 mm |
| Max. lifting displacement | 24 mm |
| Max. touch distance between pressure foot and working table | 0.05 mm |
| Dimensions | 420 × 200 × 170 mm |
| Weight | 18 kg |
| Scope of delivery | Operating stand, handle, weight, connecting rod, instruction manual |
Areas of application of hardness testers such as the TIME®5430
- manufacture and processing of rubber and elastomer products
- plastics processing
- printing rollers and roller coatings
- quality assurance and incoming goods inspection
- research and development
