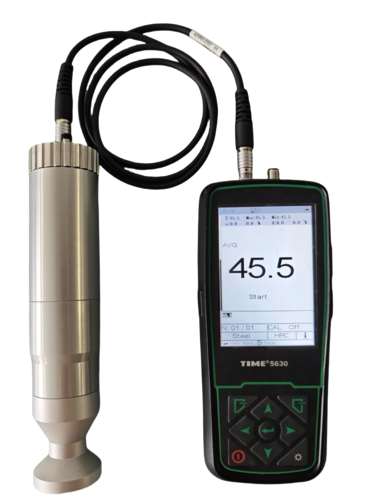

Ultrasonic hardness tester based on the UCI method with Vickers diamond indenter

TIME®5630

The TIME^®5630 is a professional ultrasonic hardness tester based on the UCI method (Ultrasonic Contact Impedance) with a Vickers diamond indenter. It produces only a microscopic indentation while delivering precise, highly repeatable readings – even on thin-walled workpieces, hardened surface layers and delicate components. Automatic 360° measurement without directional compensation makes the device particularly suitable for complex geometries and hard-to-reach locations.

Properties

3.5" colour LCD display with statistics function (max., min., average, standard deviation)
Vickers diamond indenter, selectable test force: 10N / 20N / 50N
Multiple hardness scales: HV, HB, HRC, HRB
360° measurement without directional compensation
Built-in 8 GB data storage for extensive measurement series
Programmable limit values with audible alarm
Rechargeable lithium-ion battery, > 30 hours of continuous operation
Calibrated as standard for steel and cast steel, further materials optional

Applications

Hardness testing on gears, turbine blades and rotors, shafts, pipes, flanges, welds, and mold and tool steel – suitable for manufacturing, heat treatment, aerospace, power generation, tool making and quality control.

Standard delivery scope

Main unit
50 N probe (manual)
Standard test block
V-shaped support
Probe cable
Charger

Downloads

Data Sheet TIME®5630 (PDF)

pdf - 196 KB

Specifications

Hardness scales	HV, HB, HRC, HRB
Measuring range HV	80–1400 HV
Measuring range HB	76–618 HB
Measuring range HRC	20.3–68.0 HRC
Measuring range HRB	41–105 HRB
Test force	10N / 20N / 50N
Indenter	Vickers diamond
Resolution	1 HV
Measuring direction	360° (no compensation)
Display	3.5" colour LCD
Data storage	built-in, 8 GB
Power supply	Lithium-ion battery, > 30 h operating time
Dimensions, main unit	170 × 75 × 40 mm
Dimensions, probe	Ø 23 × 170 mm
Weight	Main unit approx. 232 g, probe approx. 252 g

All SaluTron^® measuring devices comply with national (DIN) and international (ISO, BS, ASTM) standards and have the CE mark.
Subject to technical changes.

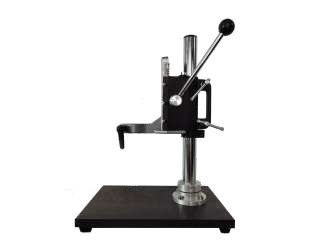

Vickers Testblocks

Type	Dimensions	Weight	Values
HV1	Φ: ≥ 90 mm H: ≥ 16 mm	W: ≈ 820 g	(150 - 850) HV1
HV5	Φ: ≥ 90 mm H: ≥ 16 mm	W: ≈ 820 g	(150 - 850) HV5
HV10	Φ: ≥ 90 mm H: ≥ 16 mm	W: ≈ 820 g	(150 - 850) HV10

HVa: a - Test force in kgf

HRC Testblocks

Type	Dimensions	Weight	Values
HRC	Φ: ≥ 90 mm H: ≥ 16 mm	W: ≈ 820 g	(15 - 65) HRC
